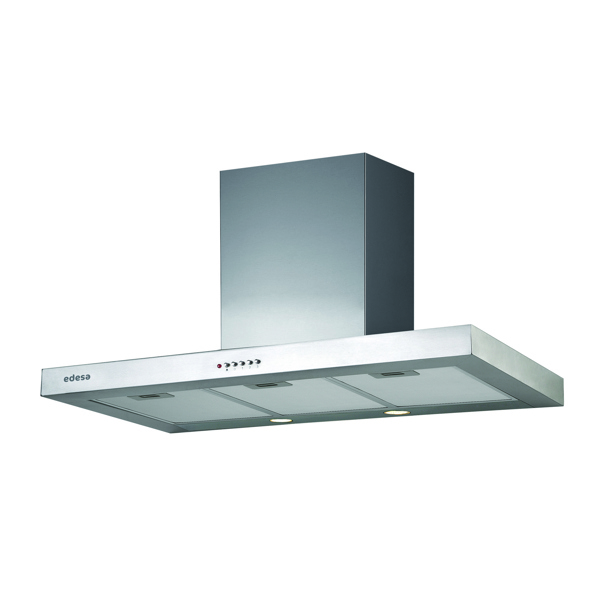

ECB-9611 X

SKU: 932271909 Category: Brand:

GENERAL INFORMATION

EAN/UPC - 8435436112461
Subfamily - Box

Product sheet

AEC (Annual energy consumption) (kWh/year) - 102,5
EEI class (energy efficiency class) - C
FDE (fluid dynamic efficiency) - 16,3
FDE class (fluid dynamic efficiency class) - D
LE (light efficiency) (lux/W) - 36
LE class (light efficiency class) - A
GFE (grease filtering efficiency) - 88,5
GFE class (grease filtering efficiency class) - B
Airflow in normal mode MIN (m3/h) - 385
Airflow in normal mode MAX (m3/h) - 645
Acoustic power in normal mode MIN (dB) - 56
Acoustic power in normal mode MAX (dB) - 70
Po (energy consumption in off mode) (W) - 0
Ps (energy consumption in standby mode) (W) - 0

Integration directive EU 66/2014

ƒ (time increase factor) - 1,4
EEI (Energy Efficiency Index) - 83,4
QBEP (maximum efficiency at air flow point) (m3/h) - 375,3
PBEP (maximum efficiency at pressure point) (Pa) - 295
WBEP (power consumption at maximum efficiency) (W) - 188,8
WL (nominal power lighting system) (W) - 7
EMIDDLE (Average illuminance on the cooking surface) (lux) - 252

External Dimensions

Width (mm) - 900
Depth (mm) - 500
Maximum total height (mm) - 1045
Minimum total height (mm) - 730
Diamètre de sortie (mm) - 125

Characteristic

Motor quantity - 1
Motor model - TA
Maximum pressure (Pa) - 430
Filter technology - Aluminium mesh
Control technology - Mechanical push button
Booster -
Power levels - 3
Timer -
Filter saturation indicator -
Charcoal filter replacement indicator -
Dimmer function -
Connectivity -
Remote control -
Display -

Lighting

Light model - ECOLED
Ray technology - LED

Installation

Minimum distance to electric plate (mm) - 550
Minimum distance to gas plate (mm) - 650
Recirculation option - √
Charcoal filter -
Back draught shutter - Included
Inner shield -

Electrical connection

Nominal voltage (V) - 220-240
Nominal frequency (Hz) - 50/60
Nominal input power (W) - 277
Electric shock protection - Class II
Power cord length (m) - 1,5

Accessories

Upper decorative duct extension - 2861301
White decorative duct - No
Black decorative duct - No
Island tube booster - No
Back draught shutter - Included
MAX PRO Metal filter - 2800917
Activated charcoal filter - 2859391
Noiseless flexible duct - 2893002
Recirculation kit - 2894001

Downloads

Commercial sheet

Photos

Measurement scheme

Energy label

Energy data sheet

User manual
